WB-NTG Trimless Gypsum
Access Door

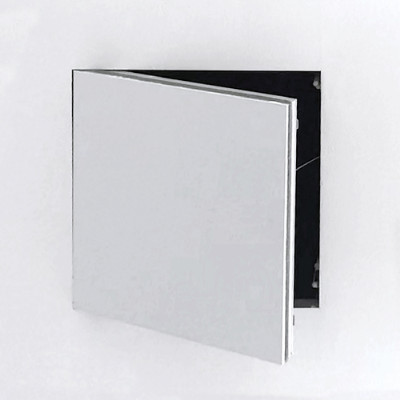

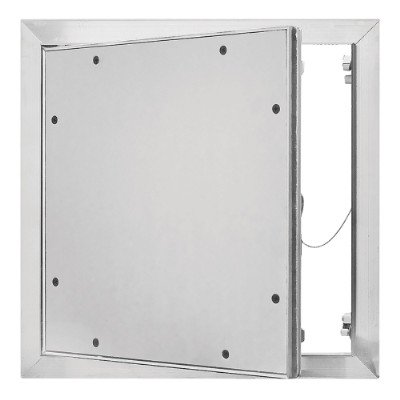

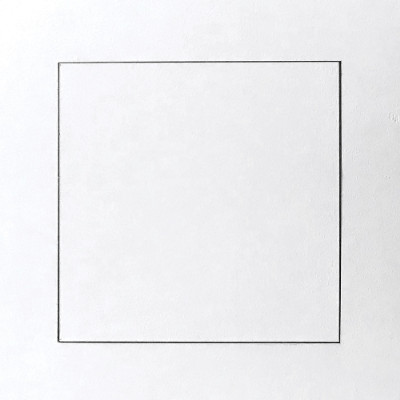

The WB-NTG Trimless Gypsum Access Door is a high quality access door designed to be as invisible as possible while maintaining an architecturally pleasing appearance. The door is supplied with moisture resistant 5/8” drywall and recessed to allow for finishing of wall or ceiling surface. A safety chain is installed on the door and frame. Brush gasket minimizes debris and air infiltration.
Download Product Sheet PDF
Features
Door and Trim
.080 aluminum extrusion with 5/8” drywall inserted into door panel and brush gasket
Frame
.080 aluminum extrusion
(1/2” & 5/8” available)
Hinge
Pivot Type - allows for door removal
Latch
Push to open
Finish
Mill finish
Dimensions
Elevation
Section Detail
Model No.*
Size
Shipping Weight (lbs.)
w/o gypsum
w/o gypsum
WB-NTG 8X8
8” x 8”
1
WB-NTG 12X12
12” x 12”
2
WB-NTG 16X16
16” x 16”
5
WB-NTG 18X18
18” x 18”
6
WB-NTG 20X20
20” x 20”
8
WB-NTG 24X24
24” x 24”
12
WB-NTG 36X36
36” x 36”
18
*Frame Size = A x B (w x h)
Allow 1/2” around frame for installation
