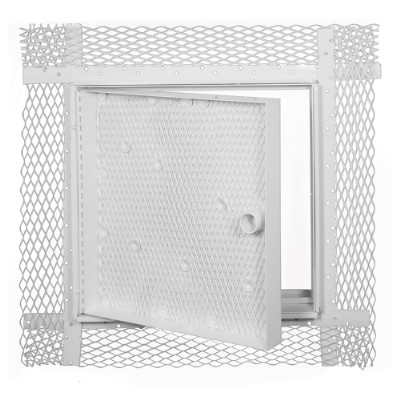

The WB-AP Acoustical Plaster Access Door is a precision door that provides a virtually concealed installation, keeping acoustical surfaces intact while contributing to sound control and better appearance. Door panels are recessed to receive plaster up to 5/8” thick.
Plaster covering the door finishes flush with the surrounding field, leaving only the narrow frame edges exposed. The metal sides of the recessed door panel prevent damage to the edges of the plaster. This door operates on a continuous stainless steel piano hinge, located at the outside edge so that the door may be opened fully to 180 degrees.
16 ga. cold rolled steel. Door is recessed 5/8” and lined with expanded metal lath
16 ga. steel with 24 ga. plaster mesh galvanized casing bead and expanded metal lath surrounding door
Full length piano hinge opens 180°, will be placed on long side of door unless otherwise requested
Flush, stainless steel cam operated with screwdriver
White powder coat paintable finish
Medium barrel cylinder lock
Elevation
Section Detail
Size = A x B (w x h)
Rough wall opening = door size + 1/4”
