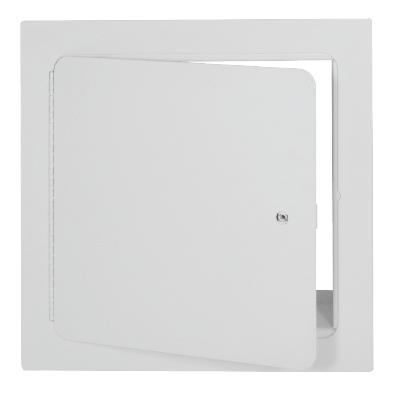

Wb-Fr Basic Uninsulated
Fire Rated Access Door
The WB-FR Basic Uninsulated Fire Rated Access Door is designed for wall application only. It is not insulated and should only be installed in environments where temperature rise is not a concern. It features a 1 1/2” trim for an easy flush application into various wall finishes. UL Listed “B” label for 1-1/2 hours. File # R10364C UL US.
Download Product Sheet PDF
Features
14 ga. cold rolled steel
16 ga. cold rolled steel, 2 1/2” deep frame
180° full length piano hinge
Self latching lock with key and knurled knob
Standard on all doors
Standard on all doors
White powder coat paintable finish
(at extra cost)
- Mortise lock preparation
- Stainless steel #304 and #316 (#4 satin finish)
- Masonry anchor straps
- Custom sizes available
Dimensions
Elevation
Section Detail
Steel/Stainless
Size = A x B (w x h)
Note: WB-FR BASIC access doors are for vertical applications only as code allows and no temperature rise is required.
Rough wall opening = door size + 1/4”
