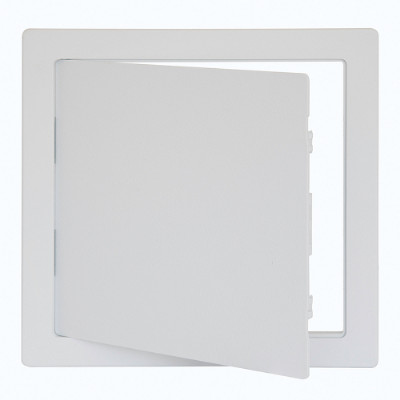

WB-MAP Plastic Multi-Functional
Access Door
The WB-MAP Plastic Multi-Functional Access Door is an economical choice that allows easy access to plumbing, electrical wiring and other utility applications behind walls and ceilings. The door is constructed from high impact ABS plastic and has a textured finish.
Download Product Sheet PDF
WB-MAP
Features
Door & Frame
High impact ABS plastic with UV stabilizers.
Pivot hinged door panel with removable feature.
Lock
Door is locked to return frame with snap friction catch
Finish
White textured finish
Installation
Adhesive caulking recommended
Packaging
Individually wrapped.
Sold in cases.
Dimensions
Elevation
Section Detail
Model No.
Size
Outer Flange
Shipping Weight (lbs.)
Per Case
Per Case
WB-MAP 4x6
3 3/4” x 5 3/4”
5” x 7”*
3
WB-MAP 6x9
5 3/4” x 8 3/4”
7 3/4” x 10 3/4”*
6
WB-MAP 8x8
7 3/4” x 7 3/4”
9 3/4” x 9 3/4”*
7
WB-MAP 12x12
11 1/2” x 11 1/2”
14” x 14”*
13
WB-MAP 14x14
13 3/4” x 13 3/4”
16”x 16”*
18
WB-MAP 22x22
21 3/4” x 21 3/4”
24 3/4” x 24 3/4”*
23
Size = A x B (w x h)
*Frame to Outer Flange
