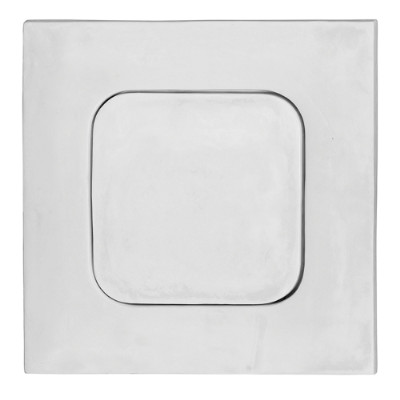

WB-GYP Gypsum Panel
Access Door
The WB-GYP Gypsum Panel Access Door is a state-of-the-art lightweight gypsum panel manufactured from inorganic material and 70% post-consumer recycled glass, using a patented composition. It is designed to blend seamlessly into walls and ceilings. Lightweight and easily textured, the panels can be used in both new or retrofit construction across unlimited applications. It is available in a pop-out or concealed hinged design with square or radius corners. It is moisture-resistant with zero mold and fungus growth.
Download Product Sheet PDF
Features
Door & Trim
Glass Fiber Reinforced Gypsum/Cement
Return Frame
Glass Fiber Reinforced Gypsum/Cement
Finish
Unpainted Natural Grey Gypsum
Options
(at extra cost)
(at extra cost)
- Neoprene Gasket
- Slotted Cam Latch
- Keyed Cam Lock
- Concealed Hinge Design
- Custom Sizes Available
Dimensions

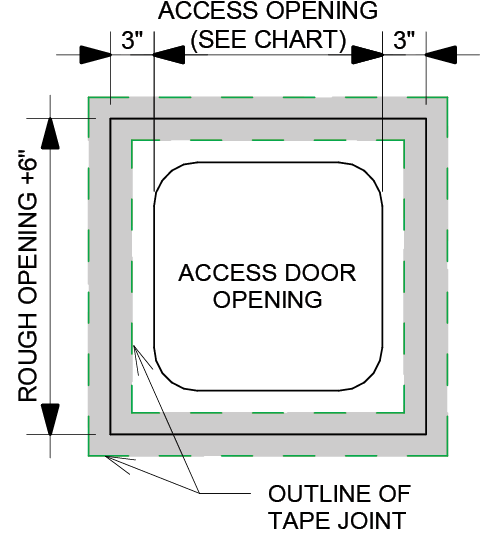

Round Corner

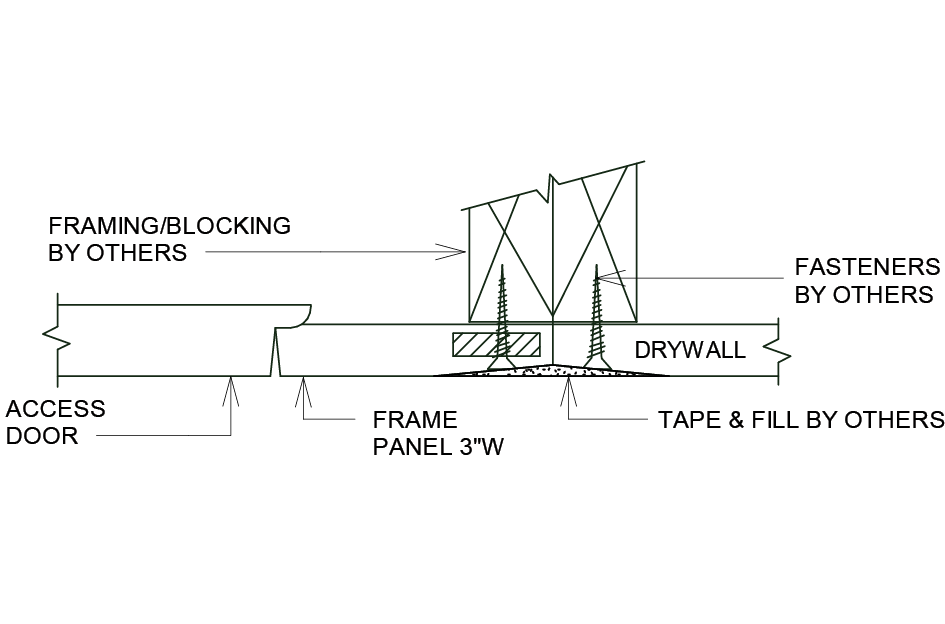

Pop-out Specification
Model No.
Size
Shipping Weight (lbs.)
WB-GYP 9x9
9" x 9"
5.6
WB-GYP 12x12
12" x 12"
7.6
WB-GYP 16x16
16" x 16"
10.7
WB-GYP 18x18
18" x 18"
18.2
WB-GYP 24x24
24” x 24”
24.9
Size = A x B (w x h)
Rough wall opening = door size + 6”
