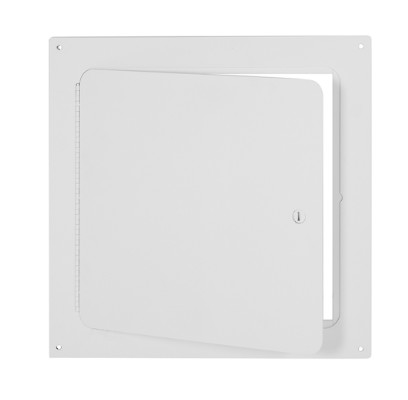

Wb-Smp Surface Mounted
Panel Access Door
The WB-SMP Surface Mounted Panel Access Door is a door face only, with no return frame. It does not require a framed opening, making it simple to install over any wall and ceiling openings. The door’s frame is laser cut from one sheet of steel for visual aesthetics.
Download Product Sheet PDF
Wb-Smp
Features
Door and Trim
14 ga. steel, trim 1 1/2” wide
Door Stops
16 ga. on 3 sides of door opening
Hinge
Full length piano hinge allows door to be opened to 180º. Will be placed on long side of door unless otherwise requested.
Latch
Flush, stainless steel cam operated with screwdriver. Latches are positioned opposite hinge as well as on top and bottom on larger sizes.
Finish
White powder coat paintable finish
Options
(at extra cost)
(at extra cost)
- Tamper Proof Cams, Hex, Torx Pin Screw Assembly
- Key cylinder lock with key (code 151)
- Mortise Lock Preparation
- Neoprene Gasketing
- Stainless steel finish #304 or #316 (#4 satin finish)
- Galvanized/Zinc Coating Finish
- Masonry Anchor Straps
- Custom Sizes Available
Dimensions
Elevation
Section Detail
Model No.
Size
Latch
Opening
Shipping Weight (lbs.)
Steel/Stainless
Steel/Stainless
WB-SMP 8x8
8" x 8"
1
TO SUIT DOOR PANEL
4
WB-SMP 12x12
12" x 12"
3
TO SUIT DOOR PANEL
5
WB-SMP 16x16
16" x 16"
3
TO SUIT DOOR PANEL
10
WB-SMP 18x18
18" x 18"
3
TO SUIT DOOR PANEL
14
WB-SMP 24x24
24" x 24"
4
TO SUIT DOOR PANEL
18
Size = A x B (w x h)
