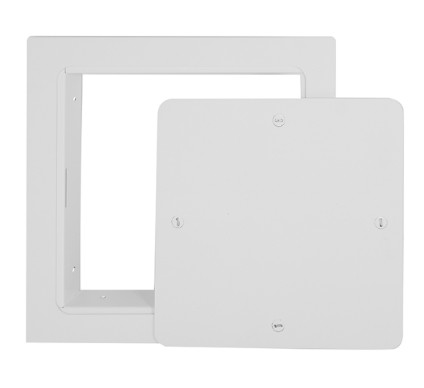

Wb-Rp Removable Panel
Access Door
The WB-RP Removable Panel Access Door is designed with the same quality features as the GP Premium Door, but it is primarily designed for use in confined spaces.
The door panel can be easily removed by unscrewing the cam latches. The frame is laser cut from one sheet of steel for visual aesthetics. As an optional feature, gasketing allows this door to be used for an air tight or dust free application.
Download Product Sheet PDF
WB-RP
Features
Door and Trim
14 ga. steel, trim 1 1/2” wide
Return Frame
18 ga. steel, depth of 1 3/4”
Latch
Flush, stainless steel cam operated with screwdriver on all 4 sides
Finish
White powder coat paintable finish
Options
(at extra cost)
(at extra cost)
- Tamper Proof Cams, Hex, Torx Pin Screw Assembly
- Key cylinder lock with key (code 151)
- Mortise Lock Preparation
- Air-Tight Neoprene Gasketing
- Stainless Steel #304 or #316 (#4 satin finish)
- Galvanized/Zinc Coating Finish
- Masonry Anchor Straps
- Custom Sizes Available
Dimensions
Elevation
Section Detail
Model No.
Size
Latch
Shipping Weight (lbs.)
WB-RP 8x8
8" x 8"
4
3
WB-RP 12x12
12" x 12"
4
8
WB-RP 16x16
16" x 16"
4
10
WB-RP 18x18
18" x 18"
4
13
WB-RP 24x24
24" x 24"
8
20
Size = A x B (w x h)
Rough wall opening = door size + 1/4”
