Wb-Alu Uninsulated
Aluminum Access Door

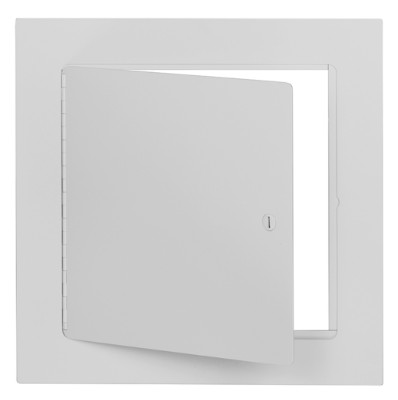

The WB-ALU Uninsulated Aluminum Access Door is a lightweight aluminum access door for wall and ceiling application. Its surround trim is welded on all 4 sides to the return frame providing strength and rigidity. It features radius corners and no corner mitering. Its aesthetic appearance makes it an architect favorite.
Download Product Sheet PDF
WB-ALU
Features
Door and Trim
.060 Aluminum, trim 1 3/4” wide
Return Frame
.060 Aluminum, depth of 1 1/16”
Hinge
Full length piano hinge
Latches
Flush aluminum cam
Finish
White powder coat paintable finish
Options
(at extra cost)
(at extra cost)
- Key cylinder lock with key (code 151)
- Neoprene Gasketing
Dimensions
Elevation
Section Detail
Model No.
Size
Latch
Shipping Weight (lbs.)
Steel/Stainless
Steel/Stainless
WB-ALU 6x6
6" x 6"
1
2.5
WB-ALU 8x8
8” x 8”
1
3.5
WB-ALU 8x12
8" x 12"
1
5
WB-ALU 10x10
10” x 10”
1
5
WB-ALU 12x12
12" x 12"
1
6
WB-ALU 12x16
12" x 16"
3
7.5
WB-ALU 12x18
12" x 18"
3
8
WB-ALU 12x24
12" x 24"
3
10
WB-ALU 14x14
14" x 14"
3
7.5
WB-ALU 16x16
16" x 16"
3
9
WB-ALU 18x18
18" x 18"
3
15
WB-ALU 18x24
18" x 24"
4
13
WB-ALU 18x36
18" x 36"
5
29
WB-ALU 20x20
20" x 20"
3
19
WB-ALU 22x22
22” x 22”
4
21
WB-ALU 22x30
22” x 30”
5
27
WB-ALU 22x36
22” x 36”
5
30
WB-ALU 24x24
24” x 24”
4
24
WB-ALU 24x30
24” x 30”
4
28
WB-ALU 24x36
24” x 36”
5
32
WB-ALU 24x48
24” x 48”
6
40
WB-ALU 30x30
30” x 30”
6
34
WB-ALU 36x36
36” x 36”
9
45
WB-ALU 36x48
36" x 48"
10
57
WB-ALU 48x48
48" x 48"
12
70
Size = A x B (w x h)
Rough wall opening = door size + 1/4”
