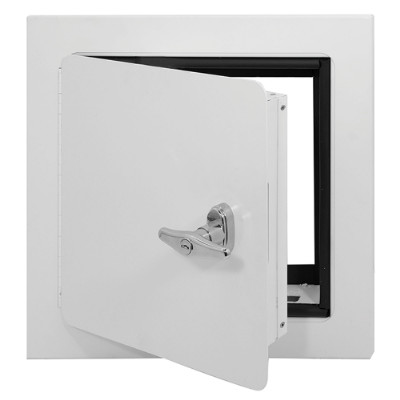

The WB-EXT Exterior T Handle Access Door is constructed of galvanized steel and is insulated. It features two types of gasketing: weather resistive open cell microcellular polyurethane gasketing and closed cell neoprene sponge SC42 W/PSA stripping gasketing on the inside for outdoor applications (certain saltwater areas might not be compatible).
16 ga. satin coat galvanized steel, trim 1 3/4” wide
Continuous stainless steel piano hinge
Allows opening to 180º
Chrome-plated zinc “T” type handle with pivot rod 3 point catch. Opens from the outside only
Powder coat white
2” Layer AMVIC SilveRboard Ridge Foam Insulation with a R/O Value 10
Open celled microcellular polyurethane on inside of door and closed cell neoprene sponge SC42 W/PSA stripping gasketing on the back of the door
For exterior purposes, weather resistive
Powder coat grey ASA61
Elevation
Section Detail
Size = A x B (w x h)
Rough wall opening = door size + 1/4”
